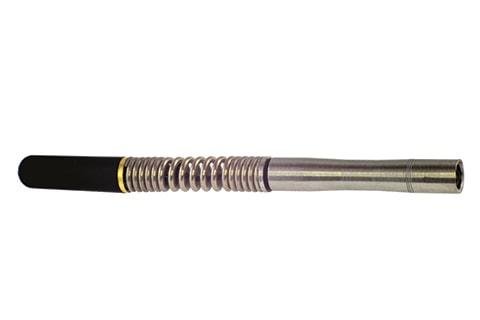

S6 MicroSonde Kit 33kHz – The S6 MicroSonde is a very small transmitter designed to allow operators to trace and detect blockages in even very small buried pipes and ducting.

With a diameter of only 6.4mm / ¼”, it is particularly suitable for tracing blockages in fibre-optic microducting or for tracing other small non-conductive pipes.

Locatable to 6.5′ (2m) and measuring 0.25 x 3.5″ (6.4 x 88mm). Supplied as a kit that includes Sonde, flexible adaptor, 2 batteries and case.

Part No: 10/SONDE-MICRO-33

Pack of 10 x batteries for S6 MicroSonde.

Part No: 10/SONDE-MICRO-BATPACK

Used to locate buried plastic Water Pipes, Gas Pipes and any other non-magnetic utility, Sondes are self-contained transmitters that are used with our cable and pipe locators.

Sondes are typically attached to a Flexrod, pushed along the pipe, and the position of the Sonde detected from above ground. The FlexiTrace product allows the entire path of the pipe to be located, rather than just the end.

Blockages can be located by pushing until the Sonde stops, and then locating that position.

S6 MicroSonde Kit 33kHz can be used with all underground cable location products including RD7100, RD7200, RD8100, RD8200, RD500, eCat, gCat & Cat4+

S6 MicroSonde Kit 33kHz – TocDem Utilities will not be beaten on price, quality or after sales service. Customer support long after the sale is just what we do. All parts & accessories are kept in stock. TocDem Utilities offers an excellent efficient re-calibration service in its well-established Calibration Workshop.

Our service engineers have over 100 years combined specialist electronic and hydraulic experience between them. We believe in investing in people and constantly have our staff re-trained in line with the latest industry techniques.

We offer a full national & international shipping and customs clearance service, which can always be arranged by our friendly experienced administration team.

Detection Depth 2m

Battery1 x lithium cell

Min. bend radius130mm

Diameter 6.4mm Ø

Signal frequency 33kHz

Total operating length 88mm standard

Battery life Approx. 10 hours at room temperature, 8 hours at 0ºC temperature

Rod fitting M5 female/adhesive fit

Product offering

The S6 MicroSonde is available as a kit, containing:

• S6 MicroSonde
• Rigid battery cap
• Flexible battery cap
• 2 × batteries
• Case
• Manual

A pack of 10 replacement lithium batteries is also available.
